LogTag Temperature Recorders

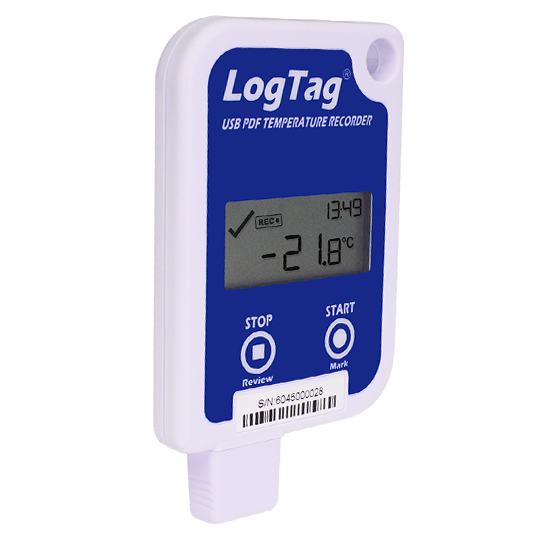

Premium LogTag with built-in USB

(Model: UTRID-16)

All the features you are looking for

The Premium USB logger had a temperature display and a replaceable battery. Ideal for vaccine fridges, hospitality and shipping.

A$165.00A$183.00 incl. GST

Clear
BULK DISCOUNTS NOT CONFIGURED PRE-CONFIGURED
10-49 $149 $167
50-99 $140 $158
100+ $132 $150

Note: Bulk pricing will be applied in the shopping cart.

ORDERING OPTIONS

Preconfigure

We can pre-configure your LogTag with our recommended settings for vaccine refrigerators or food refrigerators. This means, all you will need to do when you receive your LogTag, is press the Start button and place it in the refrigerator.

No extra Reader Interface required

This USB model has all the features of the standard LogTag without the need to buy a LogTag Interface. This means that it is more cost effective if you only need one or two loggers. (If you are monitoring more than that then the standard LogTag is more cost effective.)

You need to install a copy of the free LogTag Analyser software on your Windows PC to program the logger prior to use.

To retrieve the data, you plug the LogTag directly into a USB port on your PC.

Automatic PDF of your report

This USB LogTag has an extra party trick that other models don’t. When you plug it into the USB port on your computer, it opens a folder – similar to a USB memory stick. In that folder is a PDF copy of the data report.

This means that data reports can be read on any computer using just a PDF reader such as Acrobat.

The automatically generated PDF make this an ideal logger for tracking cold chain transport.

Pack a USB LogTag with your goods and the receiver can plug it into any PC (no software needed) and download the report.

Push Button Start

Configure the Tag to use Push Button Start and there is no rush about getting the Tag from the Reader to the refrigerator. Logging will not begin until the Start button is pushed.

Visual Alerts

If the Tag logs temperatures outside the safe range you have set, the Alert LED will flash red, giving you a handy visual notification that there has been a problem.

Easy to use

The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site

Specifications

Product Model UTRID-16
Sensor Measurement Range -30°C to +60°C (-22°F to +140°F)
Operating Temperature Range -30°C to +60°C (-22°F to +140°F)
Storage Temperature Range 0°C to +40°C (32°F to +104°F)
Rated Temperature Reading Accuracy Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). Better than ±0.7°C (±1.3°F) for -25°C to -20°C (-13°F to -4°F) & +40°C to +60°C (+104°F to +140°F). Better than ±0.8°C (±1.5°F) for +60°C to +70°C (+140°F to +158°F). Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution 0.1°C/F
Sensor Reaction Time Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999.
Recording Capacity 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging.
Sampling Interval Configurable from 30 seconds to 18 hours.
Logging Start Options Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time.
Recording Indication “REC” symbol on LCD
Download Time Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured).
Environmental IEC 60529: IP64 with USB cap fitted.
Power Source CR2032 3V LiMnO2 Battery (Replaceable).
Battery Life 1 year storage, 1 year of normal use (based on 15 minute logging, download data monthly). The battery low symbol will appear on the LCD if the UTRID-16 has a low battery.
Real Time Clock Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Connection Interface USB 2.0, A-type plug
Software PDF Reader, LogTag® Analyzer 2.8 or higher
Size 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap.
Weight 39g.
Case Material Polycarbonate.
Compliance and Certifications FDA CFR21 Part 11 FCC EMC Directive CE EMC Directives Conforms to RoHS
