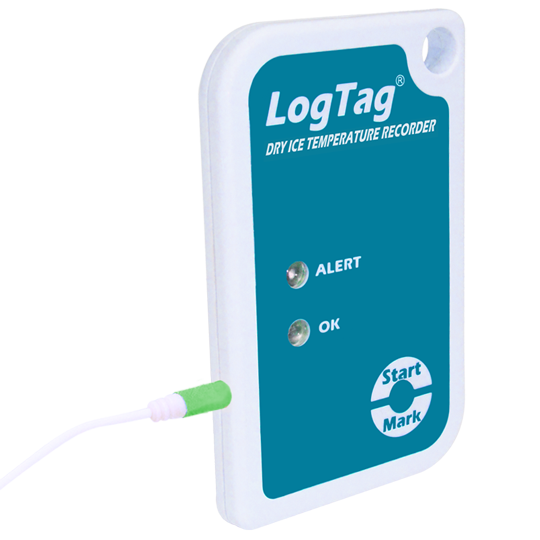

LogTag Dry Ice Logger with External Probe (TREL-8)
A$165.00 – A$214.50 incl. GST
LogTag Dry Ice Logger with External Probe (TREL-8)
Monitor Dry Ice containers without opening them. Insert the probe into your container and attach your LogTag Dry Ice temperature logger.
| BULK DISCOUNTS | NO PROBE | PROBE |
|---|---|---|
| 10-49 | $148.50 | $193.00 |
| 50-99 | $140.00 | $182.00 |
| 100+ | $132.00 | $171.00 |
Note: Bulk pricing will be applied in the shopping cart.
Improved Battery Life
Because this logger sits outside the super-cold environment, its battery life is the same as regular LogTags
Visual Alerts
If the temperature inside the package rises above the alert level, the red LED will flash, giving you a visual notification that there has been a problem.
Easy to use
The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site
Know what the temperature is without opening the container?
Our probe-less Dry Ice LogTags are great for their convenience, but this probe model has its own advantages.
Importantly, you can get an instant gauge of the temperature inside the packaging – flashing red means there is a problem.
Also, battery life is better than the direct contact model.
Specifications
| Product Model | TREL-8. |
| Sensor Measurement Range | -80°C to +40°C (-112°F to +104°F). |
| Operating Temperature Range | -20°C to +40°C (-22°F to +104°F). |
| Storage Temperature Range | -10°C to +55°C (14°F to +131°F). |
| Rated Temperature Reading Accuracy | With the logger case sitting in an environmental temperature between 0°C and 50°C:
Better than ±1°C for -30°C to +20°C. Better than ±1.2°C for -45°C to -30°C and +20°C to +40°C. Better than ±1.7°C for -80°C to -45°C. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Less than 0.1°C for -80°C to 0°C. Less than 0.2°C for 0°C to +20°C. Less than 0.5°C for +20°C to +40°C. Please see the Rated Native Resolution chart below. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST10S type. |
| Recording Capacity | 8032 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Sampling Interval | Configurable from 1 minute to several hours. |
| Logging Start Options | Push button start or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically less than 5 seconds for full memory (8000 readings), depending on computer or readout device used. |
| Environmental | IP61. |
| Power Source | 3V LiMg battery. |
| Battery Life | 2 to 3 years of normal use (based on 15 minute logging, download data monthly. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Size | 86mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 35g. |
| Case Material | Polycarbonate. |
Compliance and Certifications |     |
Do you have the USB Reader Interface?
To use this LogTag, you will need a USB interface and the LogTag Analyzer software installed on your PC.
This LogTag uses the same Reader as other LogTags, so if you already have one, it will work with these models.
If not, make sure you order one as well. As a bonus, we include the latest free LogTag Analyzer software on USB.
