A$108.90 incl. GST
Store nearly two months of data at 5 minute intervals.
See at a glance if the logger has experienced any out-of-range temperatures
The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site.
This 2nd Generation USB model has all the features of the standard LogTag without the need to buy a LogTag Interface.Â

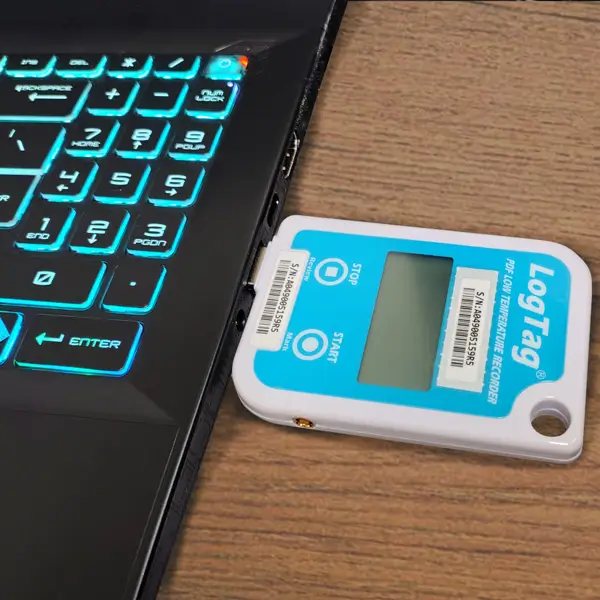

To configure the logger, or retrieve the data, you can simply plug the LogTag directly into a USB port on your PC.
This USB LogTag has an extra party trick that older models don’t. When you plug it into the USB port on your computer, it opens a folder – similar to a USB memory stick. In that folder is a PDF copy of the data report.
This means that data reports can be read on any computer using just a PDF reader such as Acrobat.
The automatically generated PDF make this an ideal logger for tracking cold chain transport.
Pack a USB LogTag with your goods and the receiver can plug it into any PC (no software needed) and download the report.
| Product Model | UTRIX-16 |
| Sensor Measurement Range | -30°C to +70°C (-22°F to +158°F) |
| Operating Temperature Range | -30°C to +70°C (-22°F to +158°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -20°C (-22°F to -4°F) & +40°C to +60°C (+104°F to +140°F). Better than ±0.8°C (±1.5°F) for +60°C to +70°C (+140°F to +158°F). Actual performance is typically much better than the rated values. |
| Rated Temperature Reading Resolution | Less than 0.1°C/F. LogTag Analyzer currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag. |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) in EN12830:1999. |
| Recording Capacity | 16,129 temperature readings. 56 days @ 5min logging, 168 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start (with configurable start delay from 1 minute to 72 hours) or specific date & time. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured). |
| Environmental | IEC 60529: IP64 with USB cap fitted. |
| Power Source | 3V Li-Mg Battery. |
| Battery Life | Typically 2 – 3 years with normal use (15 minute sampling interval, download data monthly), provided Logger is kept within the Storage Temperature Range when not in use. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 2.5 or higher |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
| Weight | 36g. |
| Case Material | Polycarbonate. |
| Compliance and Certifications |
|
A$174.90 incl. GST
A$99.00 incl. GST
A$165.00 incl. GST
If you need some form of certification about the accuracy of your logger, you have various options.
This is a free certificate that comes with every LogTag. You can access this certificate through the configuration page in LogTag Analyser.
This paid certificate is from a laboratory that uses testing instruments that have been calibrated using NATA-traceable instruments.
This paid certificate is from a laboratory that has full NATA certification.
Before you can start using a new logger, you will need to configure it with all the settings appropriate to what you are logging.
This is not difficult, and we have instructions on how to do it on this website, but if you would prefer us to do it for you, that service is available at a small cost.
We can pre-configure your LogTag with our recommended settings for:
This means, all you will need to do when you receive your LogTag, is press the Start button and place it in the environment to be monitored.
Latency, when it comes to temperature logging, refers to the delay between a change in temperature and when that change is detected and recorded by the logger. This delay can be due to the sensor’s design, the materials it’s placed in, or the logging interval. While it might sound like a disadvantage, latency can actually serve a useful purpose in certain environments—particularly where short-term temperature spikes are common but not harmful.
For example, in a busy commercial fridge, the temperature may briefly rise every time the door is opened. A logger with high latency won’t immediately react to these short fluctuations, helping to avoid unnecessary alarms or false data indicating a problem when there isn’t one. In these cases, a slight delay in response acts like a filter, focusing attention on real issues—such as prolonged exposure to unsafe temperatures—while ignoring the everyday ups and downs that don’t affect product quality or safety.
Depending on the type of logger you have, connecting your logger to your PC means either:
First Generation LogTags use a separate Reader (sometimes called a dock) for configuration and for downloading recorded data.Â
The Second Generation loggers only require a USB port or cable. Apart from saving the cost of the Reader, this makes them much better suited for shipping, because the recipient doesn’t need a LogTag Reader to download a report about the shipment’s journey.
