$174.90 incl. GST
No need for a separate Reader - connect this logger directly to your PC with a USB cable.
See both the current temperature and historical min and max temperatures.
The LogTag is so simple to set up and use that you'll be an expert in no time. We have a full LogTag training program on our site.

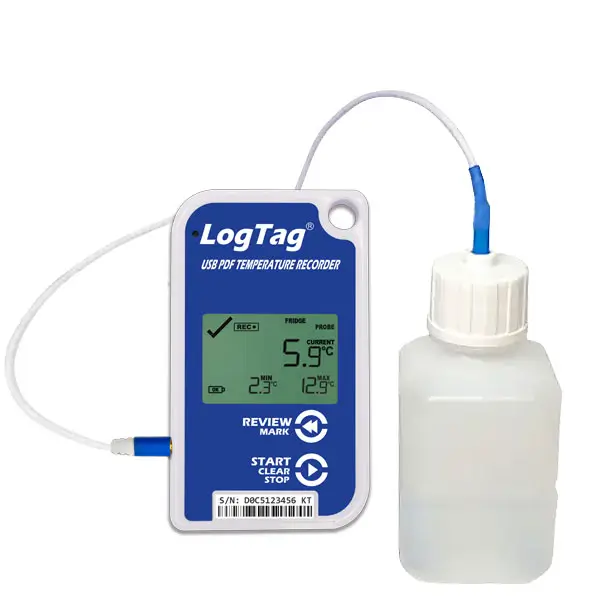

The advantage of having a logger with a probe is that the probe can be placed into a non‑freezing liquid, such as glycol, to better mimic what a liquid vaccine is experiencing.
The graph produced by the immersed probe generally has shallower peaks and troughs.
This logger can be placed into a standard LogTag Reader, but it also has a slot for a USB Micro cable that can connect it directly to your PC.
This model of LogTag is extremely versatile.
Hospitals, pharmacies and medical centres use them to monitor vaccine fridges.
Food manufacturers and distributors use them to monitor food fridges and freezers.
Manufacturers who ship temperature sensitive products use them to monitor their shipments.
Anyone monitoring liquid temperatures can use them by immersing the probe e.g. aquariums, HVAC cooling towers, bain maries.
If you have any questions about whether LogTag is right for you, call us on 1300 08 20 20 or email [email protected].
| Product Model | TRED30-16U (Replaceable Battery) |
| External Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | -10°C to +40°C (14°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). Actual performance is typically much better than the rated values. |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F). 0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F). 0.3°C (0.5°F) for measurements +70°C to +80°C (+158°F to +176°F). 0.4°C-0.6°C (0.7°F to 1°F) for measurements +80°C to +99°C (+176°F to +210°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types. |
| Recording Capacity | 17,526 temperature readings. 60 days @ 5min logging. Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to hourly. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
| Recording Indication | State indicator “RECORDING”. |
| Download Time | Typically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used. |
| Environmental | IP61 (when vertically mounted or hung). |
| Power Source | 3V CR2032 (LiMnO2) coin cell battery, user replaceable. |
| Battery Life | 1 year storage, followed by 1 year of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly). NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e typically +/- 0.00294 seconds/day/°C). |
| Standard Remote Sensor Cable Length | Standard: 1.5m (4’11″). Extended: 3m (9’10″) (Recommended maximum). |
| Remote Sensor Cable Type | PTFE (FDA food contact rated), coaxial. |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 41g. |
| Case Material | Polycarbonate. |
| Compliance and Certifications |
|
Temperature range: -40°C to +99°C
Type J (ST100J)
40mm tip length, ⌀3.2mm
This is the probe that goes with the LeakProof Vial
Type K (ST100K)
65mm tip length, ⌀3.2mm
Type L (ST100L)
90mm tip length, ⌀3.2mm
Type S (ST100S)
30mm tip length, ⌀5mm
Type T (ST100T)
140mm tip length, ⌀5mm
Type H (ST100H)
Handled with 105mm tip length, ⌀5mm
Type B (ST100B – Untipped)
Bare sensor without stainless sheath ready for fitting to custom probe assembly.
Not rated for food contact or environmentally rated.
If you need some form of certification about the accuracy of your logger, you have various options.
This is a free certificate that comes with every LogTag. You can access this certificate through the configuration page in LogTag Analyser.
This paid certificate is from a laboratory that uses testing instruments that have been calibrated using NATA-traceable instruments.
This paid certificate is from a laboratory that has full NATA certification.
Before you can start using a new logger, you will need to configure it with all the settings appropriate to what you are logging.
This is not difficult, and we have instructions on how to do it on this website, but if you would prefer us to do it for you, that service is available at a small cost.
We can pre-configure your LogTag with our recommended settings for:
This means, all you will need to do when you receive your LogTag, is press the Start button and place it in the environment to be monitored.
Latency, when it comes to temperature logging, refers to the delay between a change in temperature and when that change is detected and recorded by the logger. This delay can be due to the sensor’s design, the materials it’s placed in, or the logging interval. While it might sound like a disadvantage, latency can actually serve a useful purpose in certain environments—particularly where short-term temperature spikes are common but not harmful.
For example, in a busy commercial fridge, the temperature may briefly rise every time the door is opened. A logger with high latency won’t immediately react to these short fluctuations, helping to avoid unnecessary alarms or false data indicating a problem when there isn’t one. In these cases, a slight delay in response acts like a filter, focusing attention on real issues—such as prolonged exposure to unsafe temperatures—while ignoring the everyday ups and downs that don’t affect product quality or safety.
Depending on the type of logger you have, connecting your logger to your PC means either:
First Generation LogTags use a separate Reader (sometimes called a dock) for configuration and for downloading recorded data.
The Second Generation loggers only require a USB port or cable. Apart from saving the cost of the Reader, this makes them much better suited for shipping, because the recipient doesn’t need a LogTag Reader to download a report about the shipment’s journey.
