This LogTag has enough memory for 15,900 recordings - that's 55 days at 5 minute intervals.
If the Tag logs temperatures outside the safe range you have set, you will be alerted by an audible alarm. You can check the status of the logger on screen.
This model features a replaceable battery. The battery is a regular watch battery, readily available for leading retailers.
How warm did your vaccine stock get? See at a glance.
Attaching this LogTag to a vial filled with glycol (antifreeze), gives you the most accurate measurement of actual liquid temperatures. See any temperature events at a glance and get an audible alarm if temperatures are out of range.
Â
Place the probe inside your cool transport container running out to your LogTag, and you will have an accurate display of the temperature inside without opening the lid. An audible alert will sound if the internal temperature breaches limits.
If you have a Medisafe refrigerator and would prefer to have a logger with temperature display, this model is a completely compatible replacement for the TREX-8.

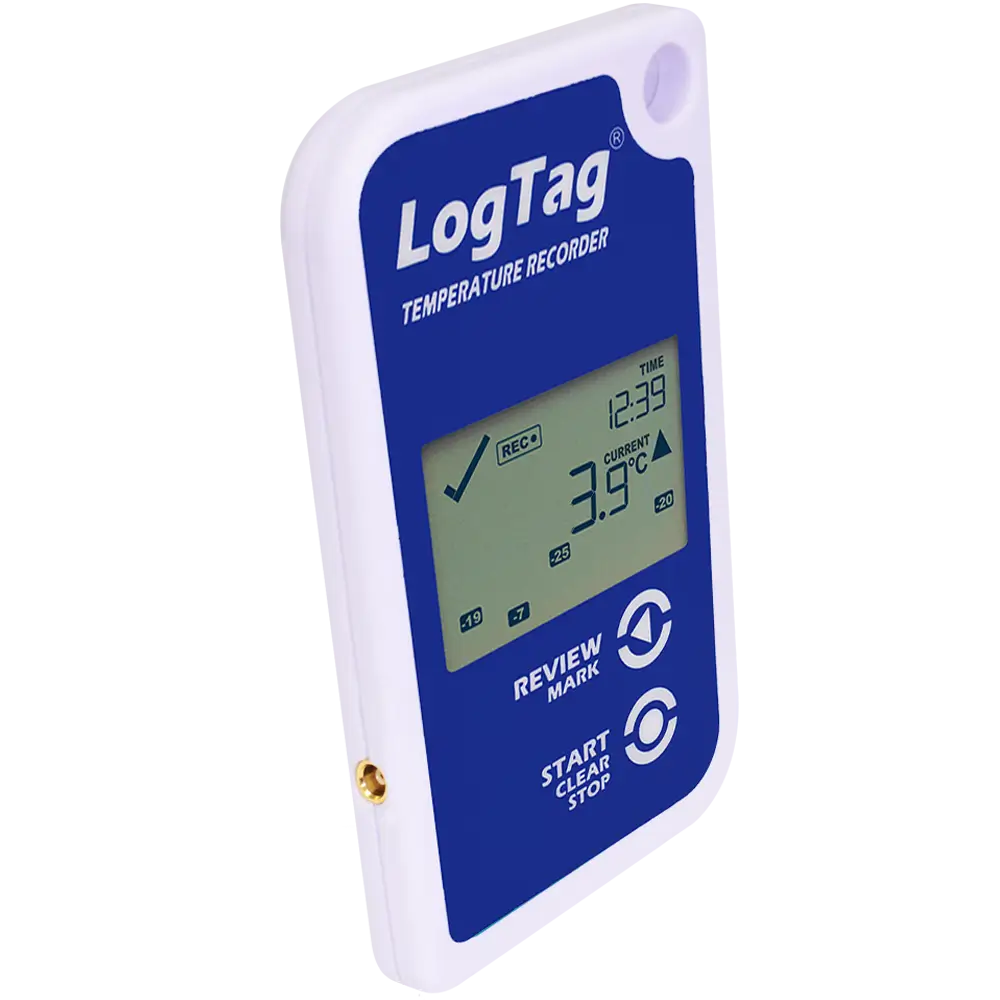

| Product Model | TRED30-16R (Replaceable Battery) |
| External Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | -10°C to +40°C (14°F to +104°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F). Better than ±0.8°C (±1.4°F) for -40°C to -20°C (-40°F to -4°F), typically ±0.5°C (0.9°F). Better than ±0.8°C (±1.4°F) for +40°C to +70°C (+104°F to +158°F), typically ±0.7°C (1.3°F). Better than ±1.2°C (±2.2°F) for +70°C to +99°C (+158°F to +210°F), typically ±1°C (1.8°F). Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F). 0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F). 0.3°C (0.5°F) for measurements +70°C to +80°C (+158°F to +176°F). 0.4°C-0.6°C (0.7°F to 1°F) for measurements +80°C to +99°C (+176°F to +210°F). Please see the Rated Native Resolution chart below. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types. |
| Recording Capacity | 15,905 temperature readings. 66 days @ 6min logging. Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to hourly. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
| Recording Indication | State indicator “RECORDING”. |
| Download Time | Typically less than 10 seconds for full memory (15,905 readings), depending on computer or readout device used. |
| Environmental | IP61 (when vertically mounted or hung). |
| Power Source | 3V CR2032 (LiMnO2) coin cell battery, user replaceable. |
| Battery Life | Typically 1 year of operation. NOTE: Typical battery life assumes 6 minute logging, day statistics are reviewed on the display no more than once daily for no longer than 30 seconds each time. Download data monthly. NOTE: Continual activation of the audible alarm will reduce the working life of the battery. When an alarm is triggered, the alarm should be cleared and reset as soon as possible. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Standard Remote Sensor Cable Length | Standard: 1.5m (4’11″). Extended: 3m (9’10″) (Recommended maximum). |
| Remote Sensor Cable Type | PTFE (FDA food contact rated), coaxial. |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 41g. |
| Case Material | Polycarbonate. |
| Compliance and Certifications |     |
To use this LogTag, you will need a USB interface and the LogTag Analyzer software installed on your PC.
This LogTag uses the same Reader as other LogTags, so if you already have one, it will work with these models.
If not, make sure you order one as well. As a bonus, we include the latest free LogTag Analyzer software on USB.
Temperature range: -40°C to +99°C
Type J (ST100J)
40mm tip length, ⌀3.2mm
This is the probe that goes with the LeakProof Vial
Type K (ST100K)
65mm tip length, ⌀3.2mm
Type L (ST100L)
90mm tip length, ⌀3.2mm
Type S (ST100S)
30mm tip length, ⌀5mm
Type T (ST100T)
140mm tip length, ⌀5mm
Â
Type H (ST100H)
Handled with 105mm tip length, ⌀5mm
Â
Type B (ST100B – Untipped)
Bare sensor without stainless sheath ready for fitting to custom probe assembly.
Not rated for food contact or environmentally rated.
If you need some form of certification about the accuracy of your logger, you have various options.

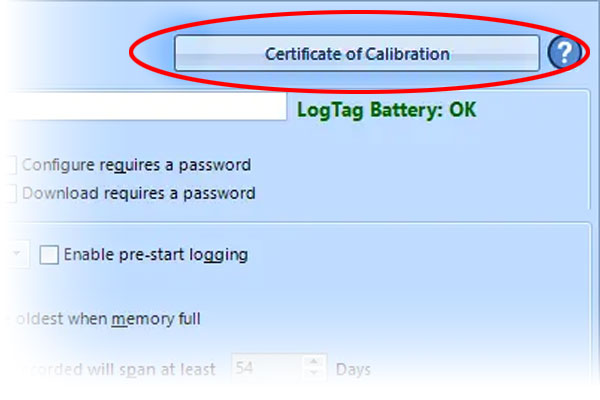

This is a free certificate that comes with every LogTag. You can access this certificate through the configuration page in LogTag Analyser.

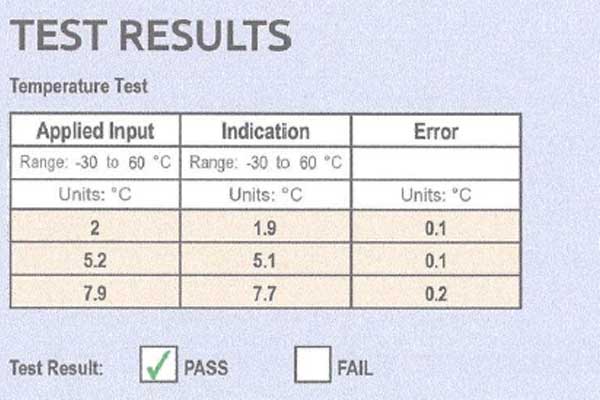

This paid certificate is from a laboratory that uses testing instruments that have been calibrated using NATA-traceable instruments.
This paid certificate is from a laboratory that has full NATA certification.
Before you can start using a new logger, you will need to configure it with all the settings appropriate to what you are logging.
This is not difficult, and we have instructions on how to do it on this website, but if you would prefer us to do it for you, that service is available at a small cost.
We can pre-configure your LogTag with our recommended settings for:
This means, all you will need to do when you receive your LogTag, is press the Start button and place it in the environment to be monitored.
Latency, when it comes to temperature logging, refers to the delay between a change in temperature and when that change is detected and recorded by the logger. This delay can be due to the sensor’s design, the materials it’s placed in, or the logging interval. While it might sound like a disadvantage, latency can actually serve a useful purpose in certain environments—particularly where short-term temperature spikes are common but not harmful.
For example, in a busy commercial fridge, the temperature may briefly rise every time the door is opened. A logger with high latency won’t immediately react to these short fluctuations, helping to avoid unnecessary alarms or false data indicating a problem when there isn’t one. In these cases, a slight delay in response acts like a filter, focusing attention on real issues—such as prolonged exposure to unsafe temperatures—while ignoring the everyday ups and downs that don’t affect product quality or safety.
Depending on the type of logger you have, connecting your logger to your PC means either:
First Generation LogTags use a separate Reader (sometimes called a dock) for configuration and for downloading recorded data.Â
The Second Generation loggers only require a USB port or cable. Apart from saving the cost of the Reader, this makes them much better suited for shipping, because the recipient doesn’t need a LogTag Reader to download a report about the shipment’s journey.
